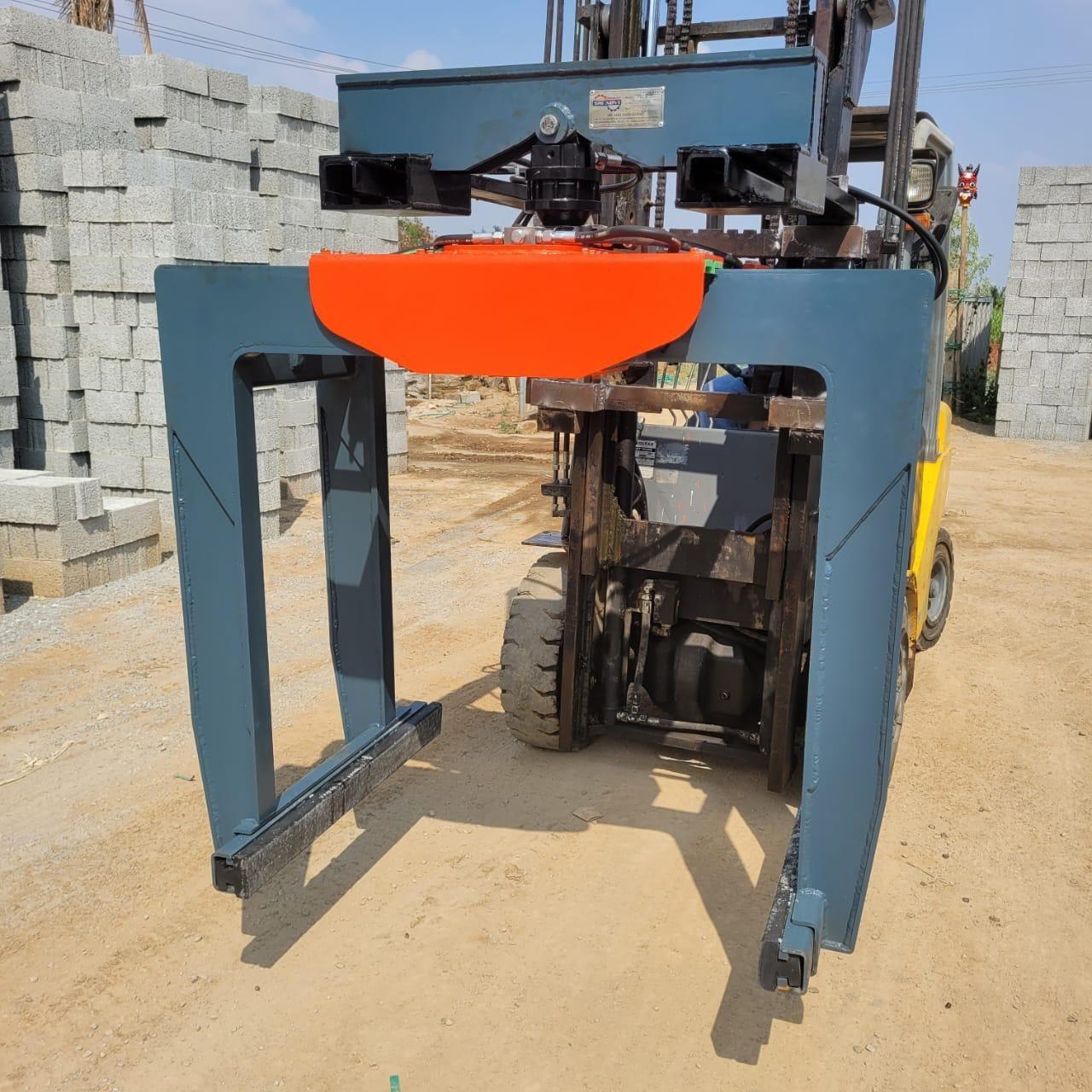

SAE 01 forklift arm brick grabber on a forklift, seen from the front

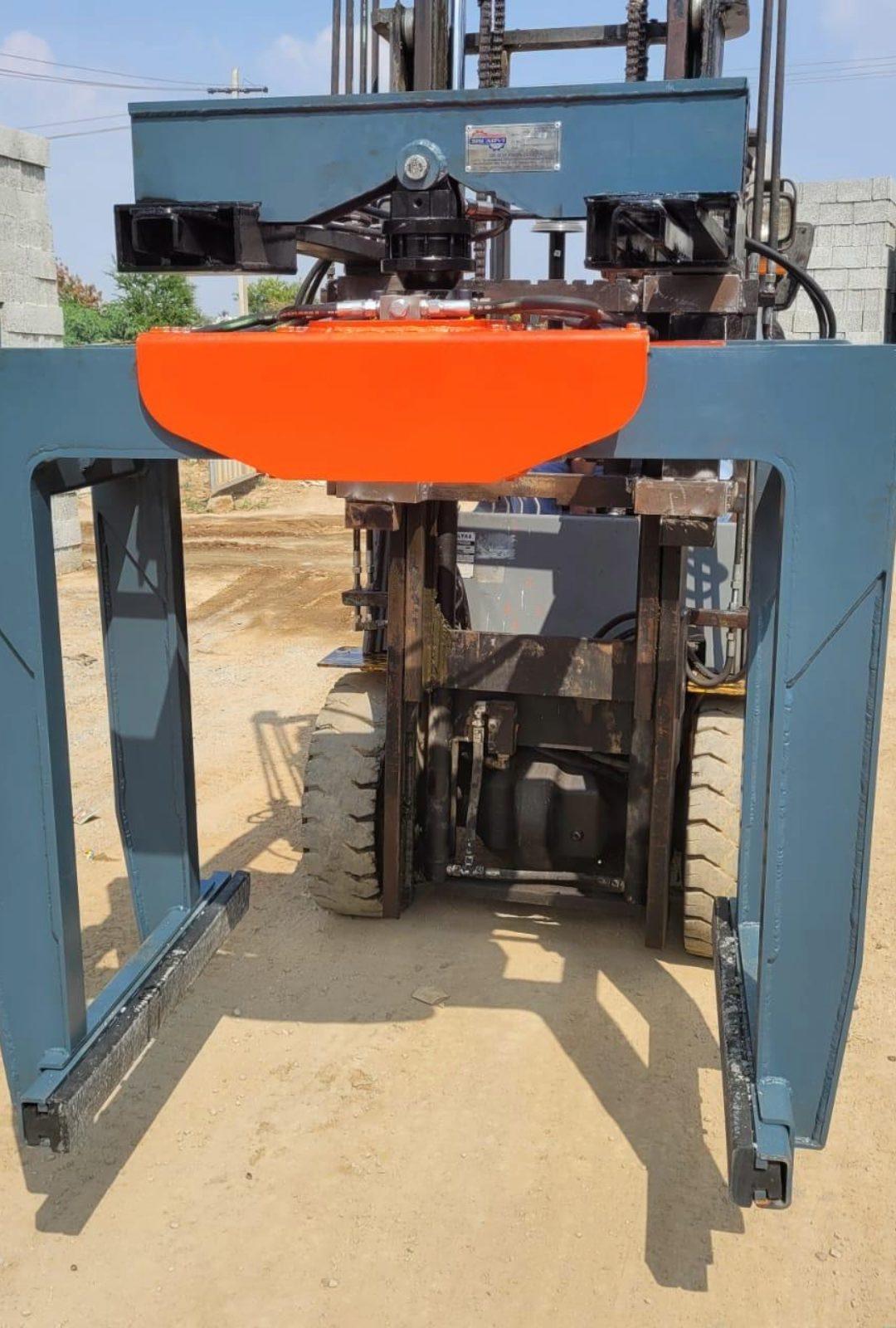

SAE 01 brick grabber with its orange rotator on the forklift

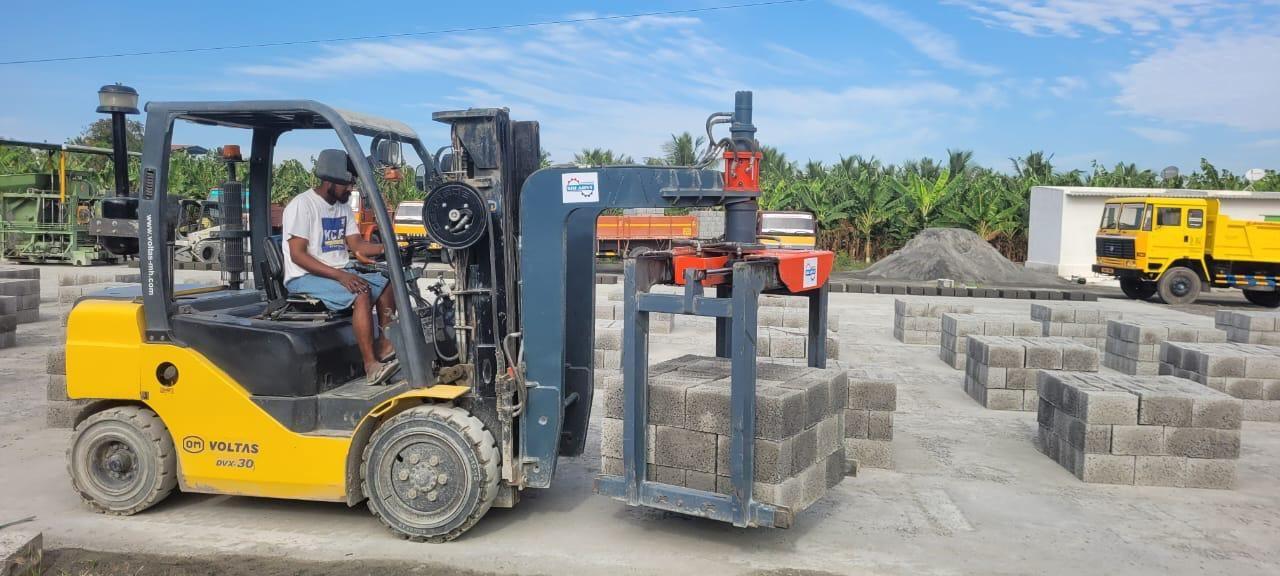

Forklift carrying a stack of hollow blocks with the SAE 01 brick grabber

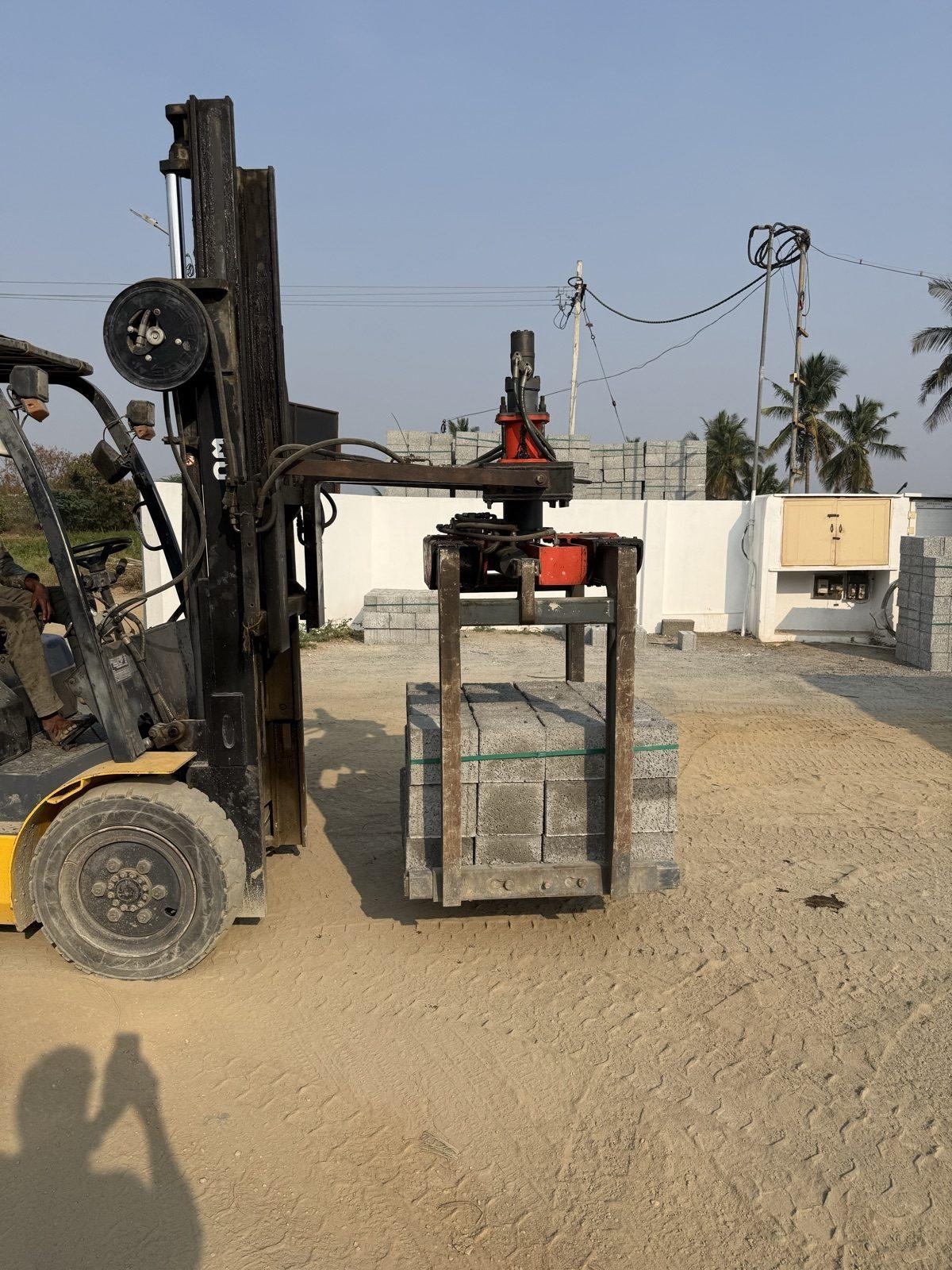

Forklift carrying a stack of paver blocks in an SAE 01 brick grabber

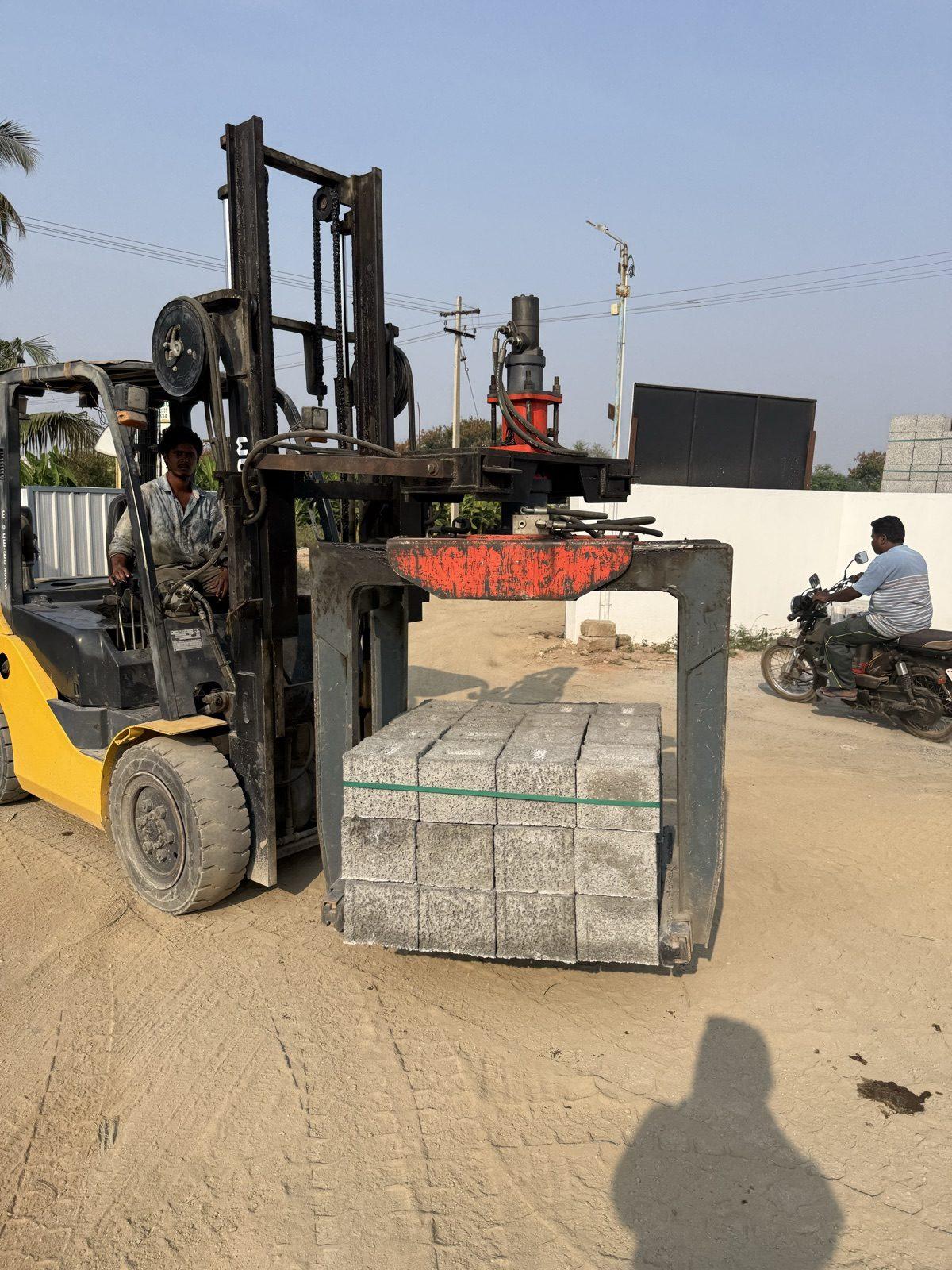

SAE 01 brick grabber holding a stack of blocks on a forklift in a block yard

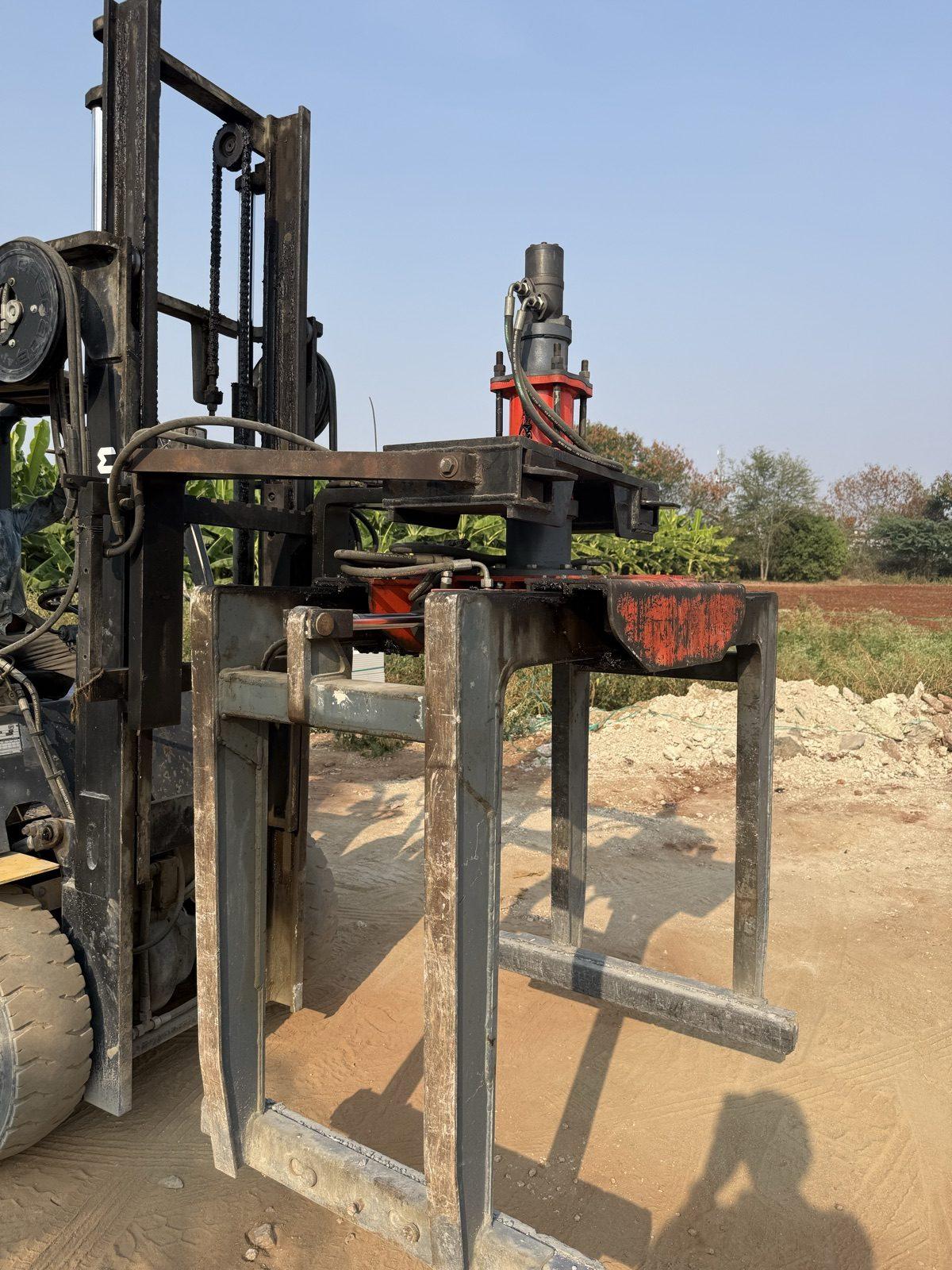

SAE 01 brick grabber arm and frame mounted on a forklift, front view

Available via ADSA

Brick grabber SAE 01: forklift arm mounted

A parallel-arm hydraulic brick and block grabber that mounts straight onto the forks of the forklift you already own. Light, quick to fit, and it rotates through 360°. • Mounts directly on the forklift arms • Lightweight structure • Parallel-functioning arms with a strong, secure hydraulic grip • All-in-one 360° rotator, with an oscillating rotator for long structural life • Handles palletised and non-palletised bricks, blocks, pavers and kerb stones • Check valve and pressure relief valve for safe clamping • Replaceable insert-type rubber pads on the gripping arms

Made by Sri Advi Engineering. ADSA Machines markets it in Tamil Nadu, quotes you and manages the order.

Maker: Sri Advi Engineering
Model: SAE 01
Capacity: Up to 2 t per lift
Price: ₹4,50,000 · Ex-works

Specifications

Gripping width: 400–1400 mm (15–55 in)
Load capacity: 2000 kg
Dimensions (L × W × H): 1100 × 920 × 1300 mm
Self weight: approx. 400 kg
Mounting: Forklift arm (fork) mounted

Download brochure (PDF)

Brick grabber SAE 01: forklift arm mounted

Specifications

Get a quote for this machine
